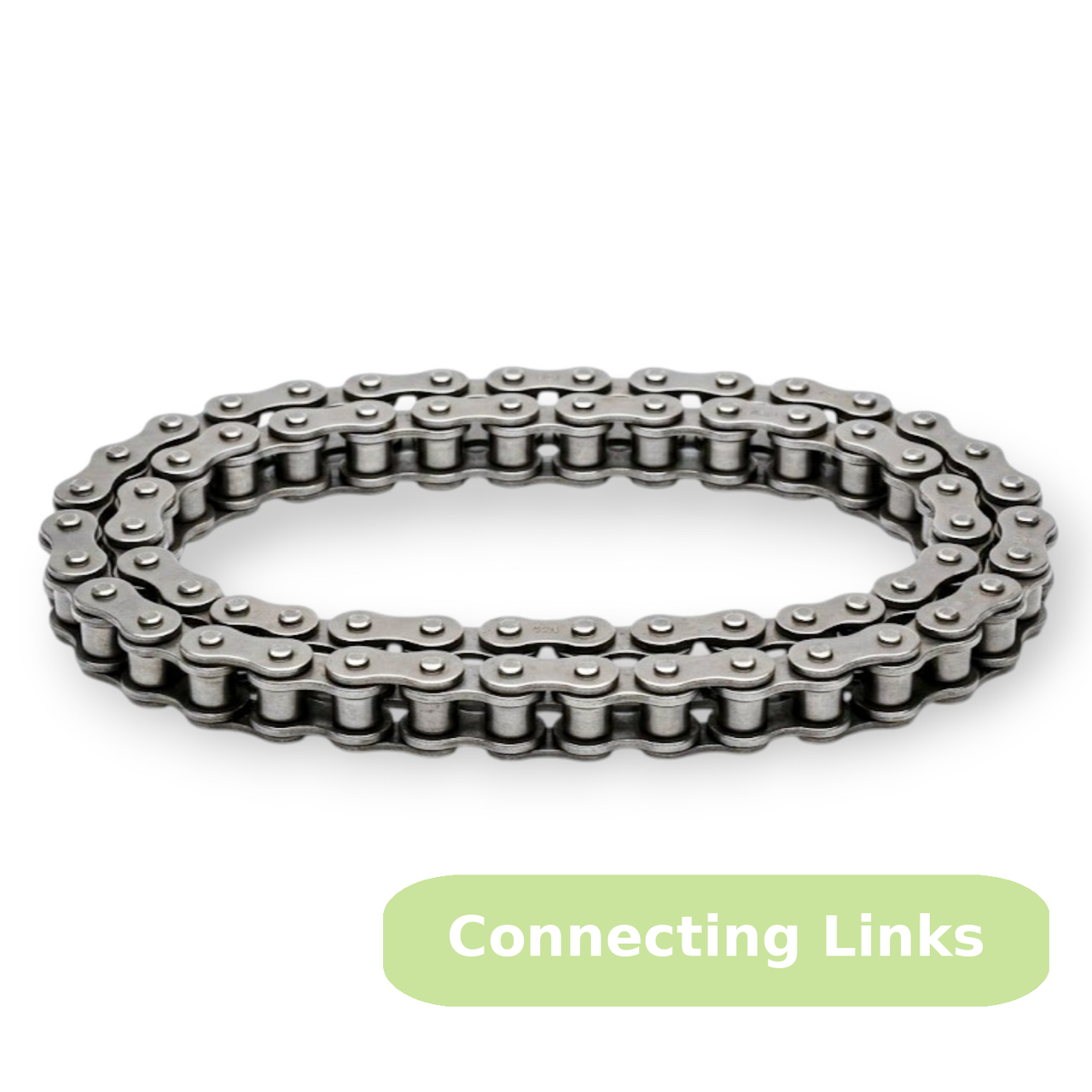

Timken Drives — Agricultural Chain Connecting Links
Cotter Pin & Spring Clip Styles · A-Series · CA-Series
Timken Drives connecting links (also called master links or coupling links) join the free ends of a chain reel into a closed loop. Every connecting link must match the chain pitch and series exactly — using a mismatched link will fail under load.
- Cotter Pin (CP) style: two solid pins retained by a cotter through each pin end — the permanent, high-vibration choice. Once cottered, the link cannot back off under shock. Preferred for combines, balers, forage headers, and anywhere chain shock is high.
- Spring Clip (SC) style: two pins retained by a spring clip snapped over the pin ends — faster to install and remove for chain that gets pulled apart regularly. Available for A550 and CA550 only.
- Matching series: Use the same series as your chain reel. A-series links pair with A-series chain, CA with CA. Mixing is not recommended.
- Construction: Heat-treated solid pins and sideplates identical in dimension and strength to the parent chain.
- Typical use: Every chain reel requires at least one connecting link to close the loop; keep spares on hand.
Click any series to jump to that connecting link. Pick your clip style with the option selector above.
| Series | Clip Style | Pitch | Parent Chain Tensile | Weight | MSRP |
|---|---|---|---|---|---|
| Agricultural Connecting Links — All Series, Both Clip Styles | |||||
| A550 | Cotter Pin | 1.630" | 11,250 lbs | 0.128 lb | $8.41 |
| A550 | Spring Clip | 1.630" | 11,250 lbs | 0.131 lb | $8.41 |
| A557 | Cotter Pin | 1.630" | 16,500 lbs | 0.197 lb | $9.03 |
| A620 | Cotter Pin | 1.654" | 12,000 lbs | 0.148 lb | $9.48 |
| CA550 | Cotter Pin | 1.630" | 11,250 lbs | 0.159 lb | $8.41 |
| CA550 | Spring Clip | 1.630" | 11,250 lbs | 0.164 lb | $8.41 |
| CA551X | Cotter Pin | 1.630" | 20,000 lbs | 0.398 lb | $15.00 |
| CA557 | Cotter Pin | 1.630" | 16,500 lbs | 0.217 lb | $9.03 |
| CA620 | Cotter Pin | 1.654" | 12,000 lbs | 0.190 lb | $7.81 |
1 Connecting links sold individually. Match the series of your existing chain reel exactly.
2 Cotter Pin (CP) is the preferred style for sustained or shock loading. Use Spring Clip (SC) only for chain that is opened and closed frequently.
3 Spring Clip variant is available for A550 and CA550 only. Other series are Cotter Pin only from the factory.
4 Tensile values reference the parent chain. Log in to view your account pricing.
