Product Description

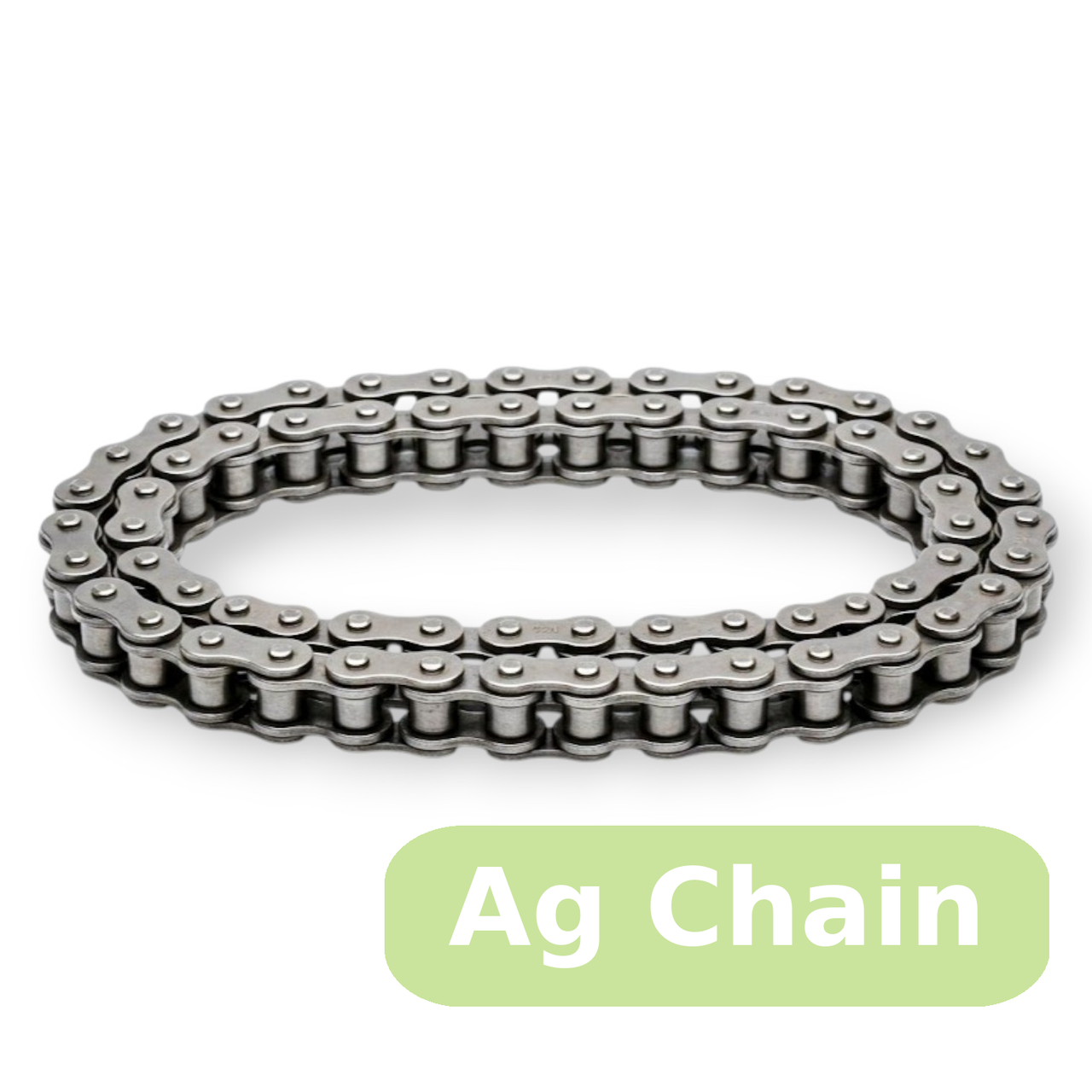

Timken Drives — Agricultural Chain Reels
Bushed Roller Chain · A-Series · CA-Series · 10-ft Reels
Timken Drives Agricultural Chain is engineered for the high-shock, abrasive conditions found in modern farm equipment — combines, round and square balers, forage harvesters, planters, and conveyors moving grain, hay, or silage. Every series uses heat-treated bushings and solid pins to resist fatigue and wear under sustained cyclic load.
- Construction: Bushed roller chain with heat-treated solid pins and bushings, riveted sideplates.
- Pitch: 1.630" (A550 / A550 HD / A557 / CA550 / CA551X / CA557) and 1.654" (A620 / CA620) — the two industry-standard agricultural pitches that interchange directly with OEM chain from Deere, Case IH, New Holland, Vermeer, AGCO / Hesston, Krone, and Claas.
- A-Series vs. CA-Series: A-series is standard agricultural duty with factory pin hardness. CA-series (CA550 / CA557 / CA620) uses extra pin-surface hardening for extended service life in severe duty.
- Heavy-duty variants: A550 HD uses larger pins and thicker sideplates than base A550. CA551X is the extreme-duty 1.630" option with a 0.437" pin and 20,000 lb average tensile — built for big square balers and forage headers.
- Working-load ratings: 1,400 – 2,400 lb continuous, with 11,250 – 20,000 lb average ultimate tensile strength per ANSI B29.1 standards.
- Typical applications: Pickup drives, bale-chamber drives, feeder-house drives, clean-grain elevators, rotor drives, auger drives, planter drive shafts, and heavy-duty farm conveyors.
Sold in complete 10-ft reels. We do not cut to length. Use the Chain Finder tab to match your equipment and brand to the right series.
Click any series to add that 10-ft reel directly to your cart.
| Series | Pitch | Roller / Bushing | Pin Dia. | Width | Avg. Tensile | Working Load | Reel Weight | MSRP |
|---|---|---|---|---|---|---|---|---|
| Agricultural Chain — Bushed Construction, 10-ft Reels | ||||||||
| A550 | 1.630" | 0.797" | 0.281" | 0.656" | 11,250 lbs | 1,400 lbs | 11.19 lb | $262.60 |
| A550 HD | 1.630" | 0.767" | 0.326" | 0.656" | 11,500 lbs | 1,700 lbs | 11.51 lb | $565.70 |
| A557 | 1.630" | 0.797" | 0.315" | 0.700" | 16,500 lbs | 1,700 lbs | 16.05 lb | $339.70 |
| A620 | 1.654" | 0.987" | 0.281" | 0.696" | 12,000 lbs | 1,700 lbs | 13.98 lb | $343.90 |
| CA550 | 1.630" | 0.797" | 0.281" | 0.656" | 11,250 lbs | 1,400 lbs | 13.84 lb | $262.60 |
| CA551X | 1.630" | 0.797" | 0.437" | 0.656" | 20,000 lbs | 2,400 lbs | 24.81 lb | $774.20 |
| CA557 | 1.630" | 0.797" | 0.315" | 0.700" | 16,500 lbs | 1,700 lbs | 17.18 lb | $339.70 |
| CA620 | 1.654" | 0.987" | 0.281" | 0.696" | 12,000 lbs | 1,700 lbs | 16.61 lb | $299.20 |
1 All reels are 10-ft and priced as complete reels (not per foot). We do not cut to length.
2 Connecting links, offset (half) links, and cotter assemblies sold separately.
3 CA-series uses hardened pin surfaces for extended wear life in severe duty; A-series is standard duty.
4 A550 HD and CA551X are heavy-duty variants with larger pins and thicker sideplates.
5 MSRP shown is the complete reel (10 ft). Log in to view your account pricing.
