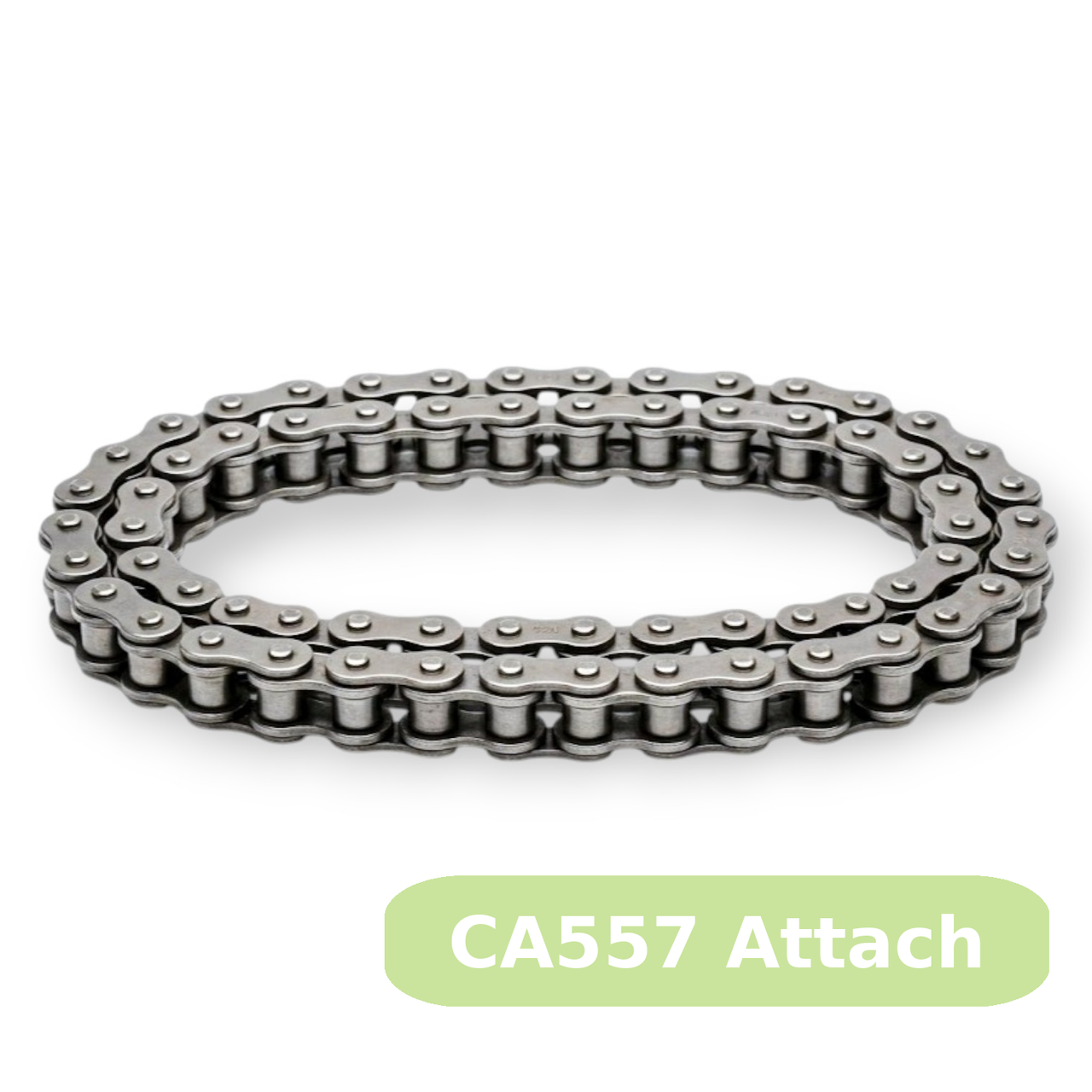

Timken Drives — CA557 Agricultural Attachment Chain
Engineered Chain · 1.630" Pitch · Heavy-Duty Hardened
Heavy-duty 1.630" agricultural pitch with a 0.315" pin and 0.700" plate width — 45% higher tensile than CA550. Built for big-square baler plunger drives, combine feeder houses, and forage-header drive chains where chain stretch and shock load are the primary failure modes.
- Pitch: 1.630"
- Base Chain Tensile: 16,500 lbs
- Duty: Heavy-Duty Hardened
- Attachments: U-style, C-style, and A-style brackets welded or integrated into sideplates at factory-set pitch intervals.
- Sold as: Pre-assembled sections to a specified overall length. Cannot be cut or resized by the end user.
- Typical use: OEM replacement on combines, balers, forage harvesters, grain handling, and specialty conveyors. Customer typically matches the Timken catalog number from the equipment manual.
Every CA557 attachment-chain configuration we carry. Click any catalog number to add that assembly to your cart.
| Catalog Number | Attachment Type | Weight | MSRP |
|---|---|---|---|
| CA557 Attachment Chain — 8 Pre-Built Configurations | |||
| CA557-001-U16-1-1 D/ | U-Attachment, single ear with hole | 0.91 lb | $42.25 |
| CA557-002-U16-1-2 CO | U-Attachment, single ear with hole | 1.30 lb | $55.39 |
| CA557-059-A4-20-1 CO | A-Attachment, angled bracket (20-1 welded) | 41.60 lb | $733.68 |
| CA557-076-U16-76-75 | U-Attachment, single ear with hole | 135.29 lb | $2570.93 |
| CA557-078-U16-78-77 | U-Attachment, single ear with hole | 138.73 lb | $2740.45 |
| CA557-080-U16-80-79 | U-Attachment, single ear with hole | 142.17 lb | $2760.49 |
| CA557-170-U16-57-1 C | U-Attachment, single ear with hole | 129.21 lb | $2517.69 |
| CA557-185-U16-62-1 C | U-Attachment, single ear with hole | 140.16 lb | $2640.41 |
1 Attachment chain is pre-assembled at the factory and cannot be cut or resized.
2 Match the catalog number to your equipment service manual. OEMs spec the exact Timken catalog number for each drive.
3 Connecting links and offset links for this series are sold as separate Lambear products.
4 Weights shown include attachments; full assembly weight for shipping calculation. Log in to view your account pricing.
📖 CA557 Catalog Number Decoder
Every Timken attachment chain catalog number follows a consistent format. Decoding it tells you exactly what configuration you are looking at.
- CA557 — Base chain series (pitch + duty level)
- XXX — Assembly configuration number (001, 002, 017, 044, etc.) — Timken internal catalog ID
- TYPE — Attachment code (see legend below)
- N — Number of attachments in the assembly
- P — Pitch position / spacing between attachments
- Modifier — R = riveted, D = drive, CO = connector, END = end assembly
Attachment Type Legend
- U17 — U-Attachment, single ear with hole (D-style)
- U16 — U-Attachment, single ear with hole
- C5 — C-Attachment, cross plate (standard)
- C5C — C-Attachment with clip and wear block
- C5E — C-Attachment, cross plate (extended)
- C6E — C-Attachment, extended cross plate
- C6EJ — C-Attachment, extended cross plate (JD spec)
- C11E — C-Attachment, heavy extended plate
- C12E — C-Attachment, 12-series extended
- C13E — C-Attachment, 13-series extended
- C17E — C-Attachment, large extended plate
- A4 — A-Attachment, angled bracket (20-1 welded)
- A1W — A-Attachment, angled bracket with welded wing
