Product Description

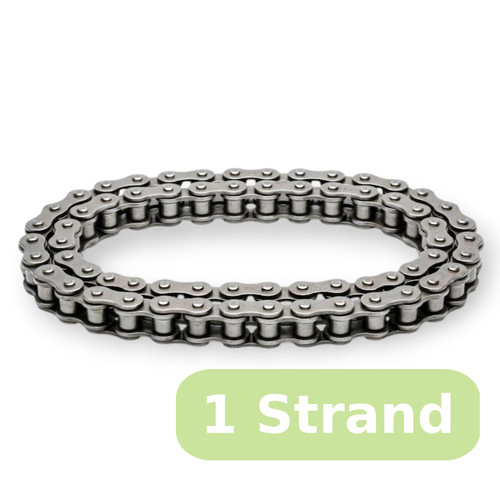

Timken Drives - Roller Chain - 1 Strand - Anti-Side-Bow
ANSI B29.1 · 1-Strand Drive Chain · Anti-Side-Bow
Overview
Specifications
Selector

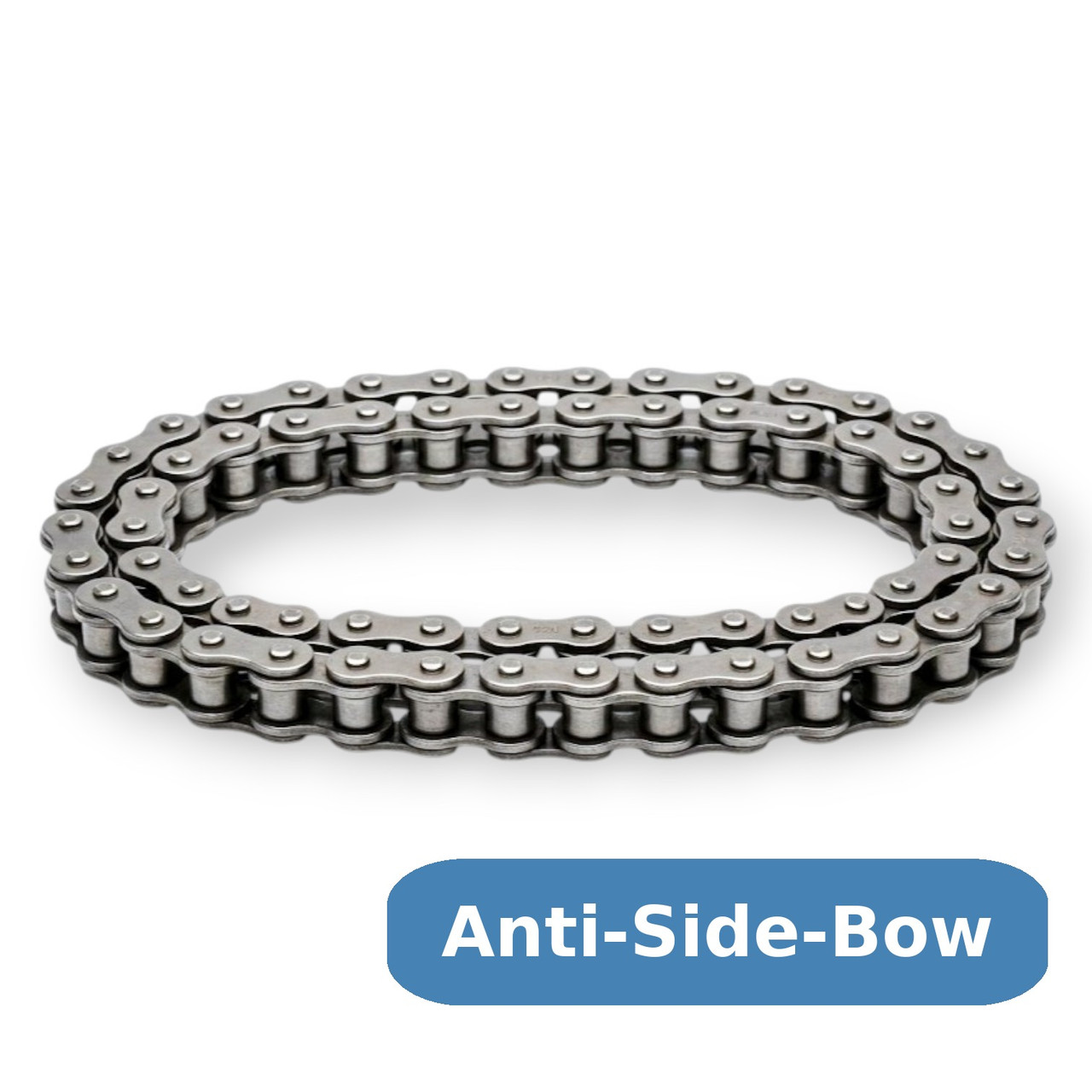

Anti-Side-Bow (AS) chain features pre-stretched pins and special side-plate geometry that prevents lateral deflection in long horizontal runs. Used in conveyor and indexing applications where chain alignment is critical.
Built to ANSI B29.1 standards on Timken Drives single-strand pitch with hardened pins, shot-peened side plates, and lubricated rollers. Available in Standard and Heavy Duty (H) series.
- Construction: Hardened-steel pins, shot-peened side plates, lubricated rollers
- Standard: ANSI B29.1 / ISO 606 single-pitch roller chain
- Coating / Finish: Anti-Side-Bow
- Reel lengths: 10 ft, 50 ft, 100 ft (boxed coil or reel)
✅ Ironclad Guarantee: Lambear Industries stands behind every Timken Drives chain we ship. If the chain fails to meet ANSI B29.1 spec or the published working load on first install, we make it right at no cost.
| Size | Pitch (in) | Roller (in) | Avg Tensile (lb) | Length | MSRP |
|---|---|---|---|---|---|
| Standard Series | |||||
| #40 | 0.5 | 0.312 | 3,700 | 10 ft | $833.20 |
| #40 | 0.5 | 0.312 | 3,700 | 50 ft | $4166.00 |
| #40 | 0.5 | 0.312 | 3,700 | 100 ft | $8332.00 |
| #50 | 0.625 | 0.4 | 6,100 | 10 ft | $1094.80 |
| #50 | 0.625 | 0.4 | 6,100 | 50 ft | $5474.00 |
| #50 | 0.625 | 0.4 | 6,100 | 100 ft | $10948.00 |
| #60 | 0.75 | 0.469 | 8,500 | 10 ft | $1364.30 |
| #60 | 0.75 | 0.469 | 8,500 | 50 ft | $6821.50 |
| #60 | 0.75 | 0.469 | 8,500 | 100 ft | $13643.00 |
| #80 | 1.0 | 0.625 | 14,500 | 10 ft | $2370.80 |
| #80 | 1.0 | 0.625 | 14,500 | 50 ft | $11854.00 |
| #80 | 1.0 | 0.625 | 14,500 | 100 ft | $23708.00 |
| #100 | 1.25 | 0.75 | 24,000 | 10 ft | $3675.60 |
Notes: MSRP shown is manufacturer's published list price. Working load is per ANSI B29.1 ratings; consult application engineering for shock or reversing loads. All variants ship from manufacturer or stock.
Use the Specifications tab to identify the chain size and length you need.
Need help selecting? Email sales@lambear.industries.
