Product Description

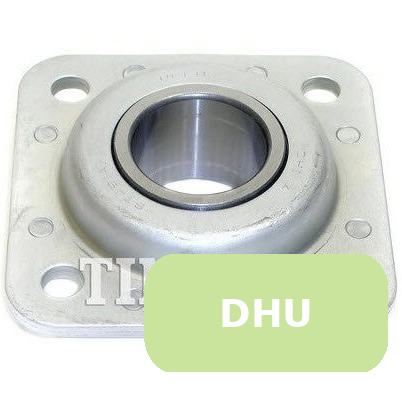

Timken® Disc Harrow Housed Units (DHU)
Complete Bolt-On Assemblies for Gang Bolts
The Timken DHU (Disc Harrow Unit) is a complete, pre-assembled housed bearing unit designed specifically for disc harrow gang bolts. These units combine a sealed bearing, a cast or stamped steel housing, and a dust-resistant seal system into one bolt-on assembly. Available in shaft sizes from 1-1/8″ to 2-3/16″.

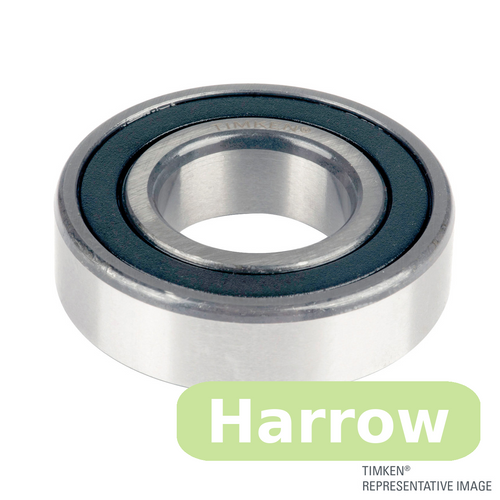

Unlike bare disc harrow bearings that require a separate housing, DHU units arrive ready to install — remove the old unit, slide the new one onto the gang bolt, and bolt it down. The integrated housing provides proper bearing alignment and protects against the extreme shock loads and abrasive soil conditions that disc harrows operate in.
Lambear Industries carries Timken DHU units for the West Texas farmer running disc harrows in tough caliche and sandy loam soils.
| Part Number | Bore | O.D. | Width | Seal Type | Weight | UPC |
|---|---|---|---|---|---|---|
| Factory Sealed (Housed Unit) (7) | ||||||
| DHU1 1/8 S209 | 1-1/8" - 1.12in - 28.6mm | 85mm - 3.35in | Std | Factory Sealed (Housed Unit) | 4.016 lb | 087796062139 |
| DHU1 1/4 S209 | 1-1/4" - 1.25in - 31.8mm | 85mm - 3.35in | Std | Factory Sealed (Housed Unit) | 3.864 lb | 087796062146 |
| DHU1 1/2 R209 | 1-1/2" - 1.50in - 38.1mm | 85mm - 3.35in | Std | Factory Sealed (Housed Unit) | 1.88 lb | 087796062153 |
| DHU1 1/2 S211 | 1-1/2" - 1.50in - 38.1mm | 3-15/16" - 3.94in - 100.0mm | Std | Factory Sealed (Housed Unit) | 5.502 lb | 087796076532 |
| DHU1 3/4 R211 | 1-3/4" - 1.75in - 44.4mm | 3-15/16" - 3.94in - 100.0mm | Std | Factory Sealed (Housed Unit) | 2.8 lb | 087796062160 |
| DHU1 15/16 C211 | 1-15/16" - 1.94in - 49.2mm | 3-15/16" - 3.94in - 100.0mm | Std | Factory Sealed (Housed Unit) | 5.268 lb | 087796118577 |
| DHU2 3/16 R211 | 2-3/16" - 2.19in - 55.6mm | 3-15/16" - 3.94in - 100.0mm | Std | Factory Sealed (Housed Unit) | 4.784 lb | 087796118744 |
1 All dimensions follow Lambear tri-format: Imperial fraction – Decimal inches – Metric (mm).
2 Use our Parts Finder at the top of the Ag Bearings category to search by OEM interchange.
