Product Description

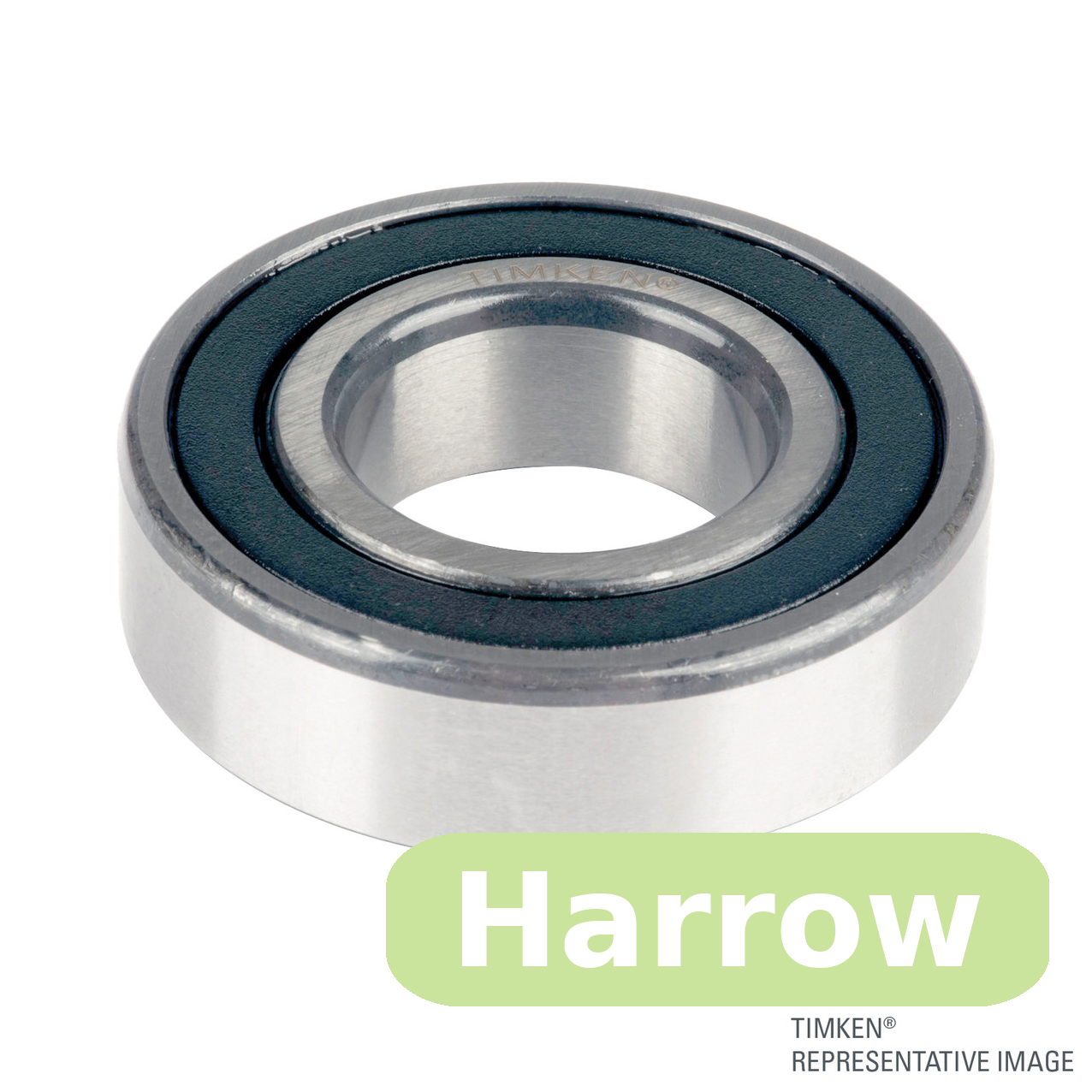

Timken® Ag Disc Harrow Bearings (Bare)
Replacement Bearings for Tillage Equipment
Timken bare disc harrow bearings are the inner bearing component for disc harrow gang bolt assemblies. Designed for the extreme impact and abrasion of tillage work, these bearings feature square and machined bore configurations. Available in bore sizes from 20mm to 2-3/16″.
Bare disc harrow bearings are for equipment that uses a separate housing or for rebuilding existing housed assemblies where only the bearing needs replacement.
If you need the complete housed assembly, check our Disc Harrow Housed Units (DHU) product listing.
| Part Number | Bore | O.D. | Width | Seal Type | Weight | UPC |
|---|---|---|---|---|---|---|
| Tri-Ply (Disc Harrow) (5) | ||||||
| 204PPB | 20mm - 0.79in | 47mm - 1.85in | Std | Tri-Ply (Disc Harrow) | 0.23 lb | 087796045729 |
| 1203KPPB4 | 2-3/16" - 2.19in - 55.6mm | 3-15/16" - 3.94in - 100.0mm | Std | Tri-Ply (Disc Harrow) | 2.88 lb | 087796301627 |
| 203PPB | 2-3/16" - 2.19in - 55.6mm | 3-15/16" - 3.94in - 100.0mm | Std | Tri-Ply (Disc Harrow) | 0.134 lb | 087796083738 |
| 206K PPB5 | 2-3/8" - 2.38in - 60.3mm | 110mm - 4.33in | Std | Tri-Ply (Disc Harrow) | 0.61 lb | 087796079373 |
| 207PPB | 2-7/16" - 2.44in - 61.9mm | 110mm - 4.33in | Std | Tri-Ply (Disc Harrow) | 0.64 lb | 087796079915 |
1 All dimensions follow Lambear tri-format: Imperial fraction – Decimal inches – Metric (mm).
2 Use our Parts Finder at the top of the Ag Bearings category to search by OEM interchange.
